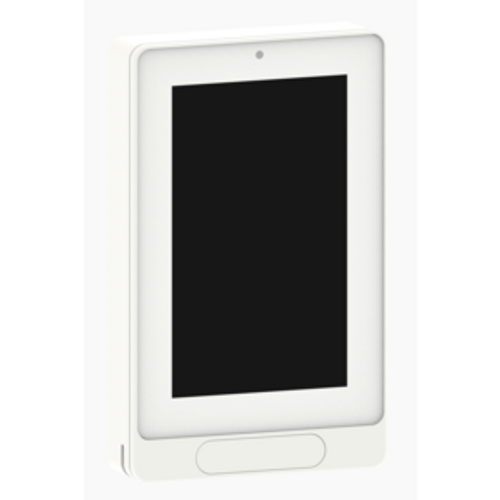

Touchscreen Room Controller Roof Top Unit, Heat Pump & Indoor Air Quality: BACnet MSTP, RH sensor, PIR sensor, White

[Us] rated supply voltage :

24 V AC 50/60 Hz +/- 15 %

[Us] rated supply voltage :

24 V DC +/- 15 %

Application :

Heat Pump

Application :

Indoor air quality (IAQ)

Application :

Roof Top Unit

AWG Gauge :

AWG 22...AWG 18

Brand :

Schneider Electric

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

319

Color Casing :

White

Communication Network Type :

Wired

Communication Port Protocol :

BACnet MS/TP

Communication Port Protocol :

Modbus RTU

Depth :

1.1 in (28 mm)

Device Short Name :

TRC6500

Directives :

2014/30/EU - electromagnetic compatibility

Directives :

2014/35/EU - low voltage directive

Directives :

2014/53/EU - radio equipment directive

Economizer :

No

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Edge control

Function Available :

Available with CO2/RH/T

Function Available :

Brightness sensor

Function Available :

Changes can be made directly over display

Function Available :

Code lock function

Function Available :

Easily configurable

Function Available :

Fan control

Function Available :

Firmware update by USB

Function Available :

HVAC control

Global Keywords :

BACnet MS/TP controller

Global Keywords :

Built-in PIR sensor

Global Keywords :

Commercial/Hotel Room controller

Global Keywords :

Freely programmable Room Controller

Global Keywords :

High resolution colored screen

Global Keywords :

Roof Top Unit

Global Keywords :

SpaceLogic

Global Keywords :

Touchscreen Controller

Global warming ; Total life cycle? :

319 kg CO2 eq.

Height :

4.7 in (120 mm)

Humidity Control :

Yes

Humidity Measurement Drift :

Less Than 1 % Yearly

Humidity Setting Range :

30…95 %

Indivisible Sale Qty :

1

Input Type :

Universal input 8

Input Voltage :

0...10 V

Market Segment :

Buildings

Market Segment :

Healthcare

Market Segment :

Lodging/Hotel

Market Segment :

Non-critical buildings

Market Segment :

Office

Market Segment :

Residential

Market Segment :

School

Market Segment :

Small commercial

Measurement Accuracy :

Humidity +/- 10 %, 10...20 % non-condensing)

Measurement Accuracy :

Humidity +/- 10 %, 80...90 % non-condensing)

Measurement Accuracy :

Humidity +/- 5 %, 20...80 % RH non-condensing)

Measurement Accuracy :

Temperature +/- 0.5 °C

Net Weight :

12.0 oz (340 g)

Network Frequency :

50 Hz

Network Frequency :

60 Hz

Number of Units in Package 2 :

7

Output Current :

0.3 A universal output

Output Current :

1 A relay output

Output Current :

1.5 A universal output inrush)

Output Current :

3 A relay output inrush)

Output Type :

4 xuniversal output

Output Type :

5 xrelay output

Output Voltage :

0...10 V AC/DC voltage output

Output Voltage :

24 V AC/DC relay output

Package 2 GTIN :

13606486881733

Package 2 Height :

5.91 in (15 cm)

Package 2 Length :

15.75 in (40 cm)

Package 2 Weight :

5.20 lb(US) (2.36 kg)

Package 2 width :

11.81 in (30 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

PIR Cover :

Yes

Pollution Degree :

2

Product Name :

Touchscreen Room Controller

Product Or Component Type :

Room controller

Range :

SpaceLogic Touchscreen Room Controller

Relative Humidity :

0…75 %

Sales Unit :

PCE

Scheduling :

Yes

SCIP Number :

Cbbd084a-a79a-4197-bc75-282a397dd209

Sensor Type :

10 kOhm T2 NTC thermistor Temperature

Sensor Type :

Bulk polymer Humidity

Sensor Type :

PIR

Sensor Type :

Space RH sensor Humidity

Standards :

EN/IEC 60730-1

Standards :

ETSI EN 300 328

Standards :

ETSI EN 301 489-1:v1.9.2

Standards :

ETSI EN 301 489-17:v2.2.1, 2012

Standards :

FCC part 15 subpart B

Standards :

FCC part 15 subpart C

Standards :

ICES-003

Standards :

UL 60730-2-9

Surface Finish :

Matte

Sustainable packaging :

Yes

Take-back :

No

Temperature Ambient Operating Range :

32…122 °F (0…50 °C)

Temperature Resolution :

0.1 °C

Temperature Setting Range :

40…90 °F (4.5…32 °C) heating

Temperature Setting Range :

54…100 °F (12…37.5 °C) cooling

Temperature Shipping and Storage Range :

-22…122 °F (-30…50 °C)

Unit Type of Package 2 :

S02

Volume of Package 2 :

18000 cm3

Width :

3.2 in (81 mm)
