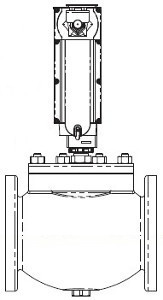

Valve Body (VB-9313-0-5-12):|2-1/2 in|3-Way Mixing|Globe|Flanged Connection|Brass Trim|74 Cv|40 Close-Off (PSI) Actuator (MA40-7173):|2-Position (On/Off)|Spring Return|24 VAC|150 in-lb Torque|4 ft Color-Coded
- Body Size : 65 mm (2-1/2 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Close-Off Pressure : 275.8 kPa
- Close-Off Pressure : 40 psi
- Configuration : 3-Way Mixing
- Connection Type : Flanged
- Control Signal : 2-Position (On/Off)
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Coefficient : 64 kvs
- Flow Coefficient : 74 cv
- Lead Length : 4 ft
- Leads and Connections : Plenum
- Loss of Power Type : Spring return
- Material Trim : Brass
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Or Component Type : Valve-actuator assembly
- Take-back : No
- Valve Type : Globe
