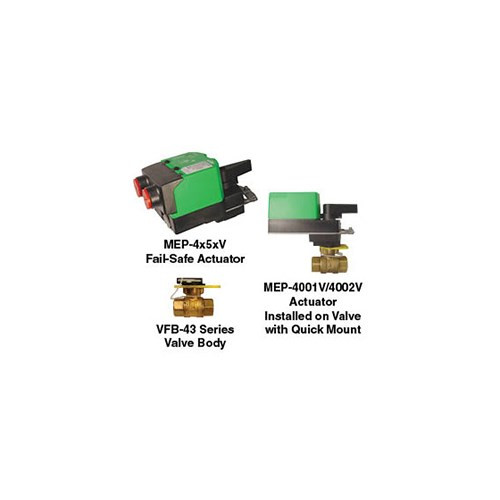

Valve: 2-1/2" 2W NPT 72.0CV, Proportional, Failsafe, 24VAC/VDC :- VEB-43 series, two-way, NPT, ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and feature an optimizing insert (except for indicated models), which reduces the Cv and characterizes the ball opening for equal percentage flow characteristics. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators. KMC€™s low-torque MEP-4xxxV actuators work on all valve sizes. Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately. See also the MEP-4000/4800 and MEP-4200/4500/4900 series for more information about the actuators. For 3-way equivalents, see the VEB-46 series.
- Actuator Type : Electric
- Brand : KMC Controls
- CV : 72
- Control Input : 0-10 VDC, 2-10 VDC
- Fail-Safe : Yes
- Fail-Safe Type : Electronic
- Feedback : Voltage
- Input Types : Proportional
- Normality (Fail) : Selectable
- Power Supply : 24 VAC, 24 VDC
- Selection Guide : Valve And Actuator
- Timing (sec) : 30
- Torque : 45 in-lb
- Valve Connection : Female NPT
- Valve Piping Style : 2W
- Valve Size : 2-1/2"
- Valve Type : Ball
