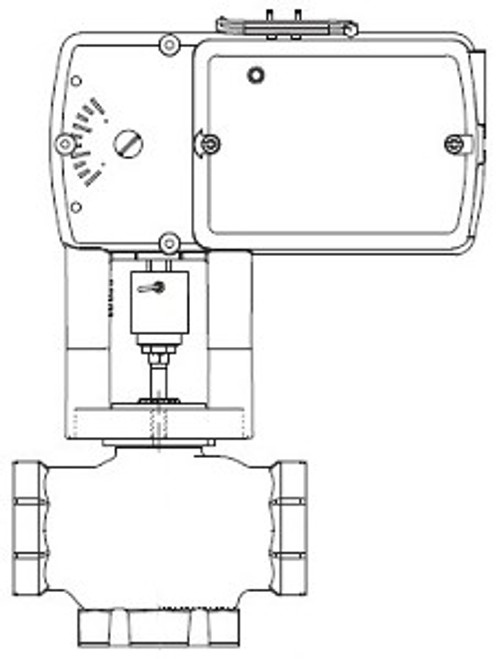

Valve Assembly: |Body Size: 1-1/4 in |Configuration: 3-Way Mixing |Type: Globe |Connection: NPT |Stem Flow Action: Stem down flow A to AB |Material Trim: Brass |Flow Coefficient: 20 cv |Close-Off Pressure: 60 PSI |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 4 to 20 mAdc |Loss of Power Type: Spring Return |Loss of Power Position: Up/Retract A closed |Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC |Leads and Connections: 3 ft Plenum |Force: 105 lbf |Mechanical Movement: Linear |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VB-7313-0-4-09 |Valve Range: Venta |Valve Linkage: None, tool-less connection |Actuator: MS51-7103-160 |Actuator Range: SmartX Actuator Product Alert: Not for use with steam
- [Us] rated supply voltage : 20...30 V DC~~
- [Us] rated supply voltage : 24 V AC/DC
- Actuator Product Range : SpaceLogic
- Actuator Product Series : MS51-7103
- Actuator Type : Electric
- analogue input range : 4...20 mA DC
- Auxiliary Switch : No
- Body Size : 32 mm (1-1/4 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Conduit Connection : 1/2 in
- Configuration : 3-Way Mixing
- Connection Type : NPT
- Control Signal : Proportional/Modulating
- Current Consumption : 140 mA
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Flow Characteristic : Linear
- Flow Coefficient : 17.3 kvs
- Flow Coefficient : 20 cv
- Force lbf : 105 lbf
- Force N : 468 N
- Hold-In Power Consumption In W : 1.5 W
- Humidity : 5…95 % non-condensing
- Insulation Class : Class II
- IP Protection Rating : IP11
- Lead Length : 3 ft
- Leads and Connections : Plenum
- Loss of Power Position : Up/Retract A closed
- Loss of Power Type : Spring return
- Manufacturer : Schneider Electric
- Material : Polymer: housing
- Material Body : Bronze
- Material Plug : Brass
- Material Trim : Brass
- Mechanical Movement : Linear
- Media Compatibility : Glycol 25 %
- Media Compatibility : Glycol 30 %
- Media Compatibility : Glycol 50 %
- Media Compatibility : Glycol 60 %
- Media Compatibility : Water
- Motor Type : Brushless DC motor
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Packing Material : Spring-Loaded PTFE/EPDM
- Pipe Size : 1-1/4 in
- Position Indicator : Housing Scale
- Power Consumption Running VA : 6.6 VA AC
- Power Consumption Running Watts : 4.2 W
- Pressure Allowable Static : 400 psig up to 150 °F decreasing to 321 psig at 281 °F
- Pressure Class : 250 ANSI
- Pressure Fluid Max Delta P Normal Life : 87 psi (599.8 kPa)
- Product Alert : Not for use with steam
- Product Destination : globe valve
- Product Or Component Type : Valve-actuator assembly
- Rangeability : 100:1 port A
- Seat Leakage : Port A: Class IV (0.01 %)
- Seat Leakage : Port A: Class V
- Seat Leakage : Port B: Class III (0.1 %)
- Seat Material : Port A: bronze
- Seat Material : Port B: bronze
- Seating Seal Material : Port A:EPDM
- Seating Seal Material : Port B:metal to metal
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Down Flow A to AB
- Stem Movement : Linear
- Stroke Auto Calibration : No
- Stroke Distance : 7/16 in
- Take-back : No
- Temperature Ambient Operating Range : -22…140 °F (-30…60 °C)
- Temperature Range Fluid : 19…280 °F (-7…138 °C)
- Temperature Shipping and Storage Range : -40…160 °F (-40…71 °C)
- Toxic heavy metal free : Yes
- Valve Product Range : Venta
- Valve Product Series : VB-7300
- Valve Type : Globe
