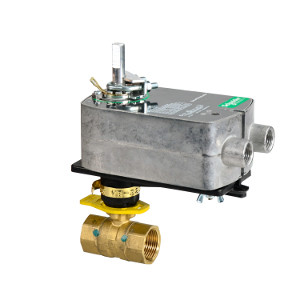

VA-2253-532-9-05

[Us] rated supply voltage :

120 V AC~~

Actuator Comment :

Actuator mounted left side up

Actuator Product Range :

SmartX Actuator

Actuator Product Series :

Mx4x-7xxx

Actuator Type :

Electric

Auxiliary Switch :

No

Body Size :

15 mm (1/2 in)

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov

Close-Off Pressure :

130 psi

Close-Off Pressure :

897 kPa

Conduit Connection :

1/2 in

Configuration :

2-Way

Connection Type :

NPT

Control Signal :

2-Position (On/Off)

Duty Cycle :

100 %

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Equal Percentage

Flow Coefficient :

4.06 kvs

Flow Coefficient :

4.7 cv

Humidity :

5…95 % non-condensing

Insulation Class :

Class I

IP Protection Rating :

IP11

Lead Length :

3 ft

Leads and Connections :

Appliance

Loss of Power Position :

Normally open

Loss of Power Type :

Spring return

Manufacturer :

Schneider Electric

Material :

Die cast aluminium: housing

Material :

EPDM: O-rings

Material :

Reinforced teflon: seal

Material Ball :

Stainless Steel

Material Body :

Forged brass

Material Characterizing Insert :

Glass-Filled Noryl

Material Mounting Plate :

Glass-Filled Polymer

Material Stem :

Stainless Steel

Material Stem Seal :

EPDM O-Rings

Material Trim :

Stainless Steel

Mechanical Movement :

Rotary

Media Compatibility :

Glycol 25 %

Media Compatibility :

Glycol 30 %

Media Compatibility :

Glycol 50 %

Media Compatibility :

Water

Motor Type :

Brush DC motor

NEMA Protection Rating :

NEMA 2

Override :

Manual override with 5/32 allen wrench

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pipe Size :

1/2 in

Position Indicator :

Stroke Indicator On Bracket

Power Consumption Running VA :

4.3 VA AC

Pressure Allowable Static :

360 psi

Pressure Class :

ANSI class 360

Pressure Fluid Max Delta P Normal Life :

130 psi (896.3 kPa)

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rangeability :

159:1

Rotation :

95 °

Rotational Range Adjustment :

40 to 95 degrees

Seat Leakage :

Port A: Class IV (0.01 %)

Selection Tools :

Valve Selection Tool

Stem Movement :

Rotary

Take-back :

No

Temperature Ambient Operating Range :

-22…140 °F (-30…60 °C)

Temperature Range Fluid :

19…250 °F (-7…121 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Torque :

3.95 N.m

Torque :

34.96 lbf.in

Valve Product Range :

VB-2xxx

Valve Product Series :

VB-2200

Valve Type :

Ball

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-26080.PDF
