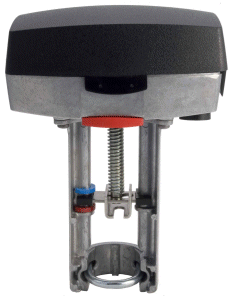

Valve Assembly: |Body Size: 3 in |Configuration: 3-Way Mixing |Type: Globe |Connection: Flanged |Stem Flow Action: Stem up, mixing closed A to AB |Material Trim: Brass |Flow Coefficient: 101 cv |Close-Off Pressure: 19 PSI |Actuator Type: Electric |Control Signal: Floating, Proportional |Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor |Loss of Power Type: Non-Spring Return |Loss of Power Position: Fail in place |Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC |Leads and Connections: Terminal Block |Force: 179 lbf |Mechanical Movement: Linear |Protection Rating: NEMA 1 Assembly Components:|Valve Body: VB-9313-0-5-13 |Valve Linkage: AV-822 |Actuator: M800A |Actuator Range: FORTA Product Alert: Not for use with steam.
- [Us] rated supply voltage : 20...29 V DC~~
- [Us] rated supply voltage : 24 V AC/DC
- Actuator Product Range : SpaceLogic
- Actuator Product Series : M800
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- analogue input range : 4...20 mA with 500 Ohm resistor
- Auxiliary Switch : 2 SPDT (optional)
- Body Size : 80 mm (3 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Close-Off Pressure : 132 kPa
- Close-Off Pressure : 19 psi
- Configuration : 3-Way Mixing
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Linear
- Flow Coefficient : 101 cv
- Flow Coefficient : 87.35 kvs
- Force lbf : 179 lbf
- Force N : 797 N
- Humidity : 15…95 % non-condensing
- Loss of Power Position : Fail in place
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Material Body : Cast iron
- Material Plug : Brass
- Material Trim : Brass
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- Output Current : 30 mA
- Output Voltage : 16 V DC
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Packing Material : Spring-Loaded PTFE/EPDM
- Pipe Size : 3 in
- Position Indicator : Green Push Stem with Color Markers
- Pressure Allowable Static : 200 psig up to 150 °F decreasing to 169 psig at 281 °F
- Pressure Class : 125 ANSI
- Product Alert : Not for use with steam.
- Product Destination : globe valve
- Product Or Component Type : Valve-actuator assembly
- Rangeability : Greater than 500:1
- Seat Leakage : Port A: Class III (0.1 %)
- Seat Material : Port A: bronze
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Up, Mixing Closed A to AB
- Stem Movement : Linear
- Stroke Auto Calibration : Yes
- Stroke Distance : 7/8 in
- Take-back : No
- Temperature Ambient Operating Range : 14…122 °F (-10…50 °C)
- Temperature Range Fluid : 39…300 °F (4…149 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
- Valve Product Series : VB-9300
- Valve Type : Globe
