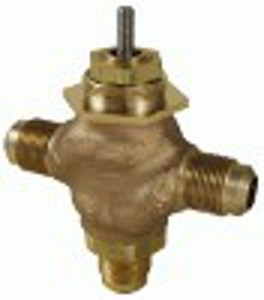

VB-7332-0-4-04

$227.60
(No reviews yet) Write a Review
SKU:
VB-7332-0-4-04
Adding to cart… The item has been added
Valve Body (VB-7332-0-4-04): |Body Size: 5/8 in |Configuration: 3-Way Sequencing |Type: Globe |Connection: Flare |Stem Flow Action: Stem up flow B to AB |Material Trim: Brass |Flow Coefficient: 4.4 cv |Control Media: Glycol 25 to 60%, Water |Product Line: Schneider Electric |Product Range: Venta |Product Series: VB-7300 Product Alert: Not for use with steam.
Body Size :
15.88 mm (5/8 in)~~
By Schneider :
Yes
Carbon footprint (kg CO2 eq, Total Life cycle) :
4
Configuration :
3-Way Sequencing
Connection Type :
Flare
Final Result for Connectable :
Not connectable
Final Result for Flywheel performance tracking :
Non Flywheel
Flow Characteristic :
Sequencing
Flow Coefficient :
3.81 kvs
Flow Coefficient :
4.41 cv
Global warming ; Total life cycle? :
4 kg CO2 eq.
Manufacturer :
Schneider Electric
Material Body :
Bronze
Material Plug :
Brass
Material Stem :
Stainless Steel 316
Material Trim :
Brass
Media Compatibility :
Glycol 25 %
Media Compatibility :
Glycol 30 %
Media Compatibility :
Glycol 50 %
Media Compatibility :
Glycol 60 %
Media Compatibility :
Water
Packaging made with recycled cardboard :
Yes
Packaging without single use plastic :
No
Packing Material :
Spring-Loaded PTFE/EPDM
Pipe Size :
5/8 in
Pressure Class :
250 ANSI
Pressure Fluid Max Delta P Normal Life :
35 psi (241.3 kPa)
Product Alert :
Not for use with steam.
Product Or Component Type :
Valve
Rangeability :
100:1
Seat Leakage :
Port A: Class III (0.1 %)
Seat Material :
Port A: bronze
Seat Material :
Port B: bronze
Seating Seal Material :
Port A:metal to metal
Seating Seal Material :
Port B:metal to metal
Selection Tools :
Valve Selection Tool
Stem Flow Action :
Stem Up Flow B to AB
Stem Movement :
Linear
Stroke Distance :
7/32 in
Take-back :
No
Temperature Range Fluid :
19…280 °F (-7…138 °C)
Valve Product Range :
Venta
Valve Product Series :
VB-7300
Valve Type :
Globe
