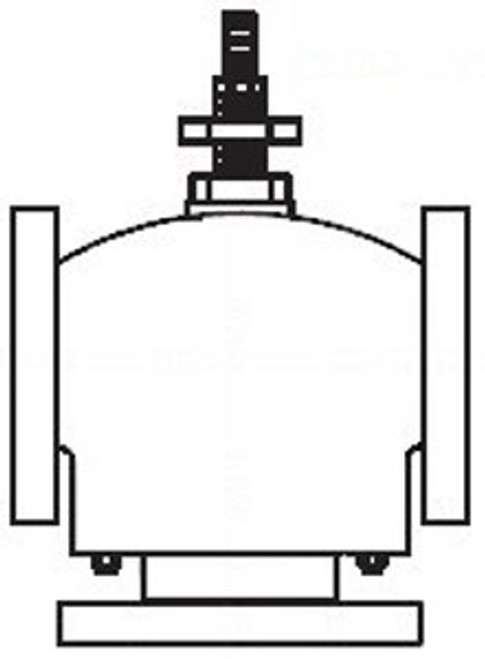

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VB-9313-0-5-15

$2,786.28
(No reviews yet) Write a Review
SKU:
VB-9313-0-5-15
Adding to cart… The item has been added
Valve Body (VB-9313-0-5-15): |Body Size: 5 in |Configuration: 3-Way Mixing |Type: Globe |Connection: Flanged |Stem Flow Action: Stem up, mixing closed A to AB |Material Trim: Brass |Flow Coefficient: 290 cv |Control Media: Water |Product Line: Schneider Electric |Product Series: VB-9300 Product Alert: Not for use with steam.
Body Size :
125 mm (5 in)~~
By Schneider :
Yes
Carbon footprint (kg CO2 eq, Total Life cycle) :
709
Configuration :
3-Way Mixing
Connection Type :
Flanged
Final Result for Connectable :
Not connectable
Final Result for Flywheel performance tracking :
Non Flywheel
Flow Characteristic :
Linear
Flow Coefficient :
250.82 kvs
Flow Coefficient :
290 cv
Global Keywords :
3 Way
Global Keywords :
Flange
Global Keywords :
Globe
Global Keywords :
Valve
Global warming ; Total life cycle? :
709 kg CO2 eq.
Manufacturer :
Schneider Electric
Material Body :
Cast iron
Material Plug :
Brass
Material Stem :
Stainless Steel 316
Material Trim :
Brass
Media Compatibility :
Water
Packaging made with recycled cardboard :
Yes
Packaging without single use plastic :
No
Packing Material :
Spring-Loaded PTFE/EPDM
Pipe Size :
5 in
Pressure Class :
125 ANSI
Product Alert :
Not for use with steam.
Product Or Component Type :
Valve
Rangeability :
Greater than 500:1
Recycled metal content at CR level :
0
Seat Leakage :
Port A: Class III (0.1 %)
Seat Material :
Port A: bronze
Selection Tools :
Valve Selection Tool
Stem Flow Action :
Stem Up, Mixing Closed A to AB
Stem Movement :
Linear
Stroke Distance :
1-3/4 in
Take-back :
No
Temperature Range Fluid :
39…300 °F (4…149 °C)
Valve Product Series :
VB-9300
Valve Type :
Globe
