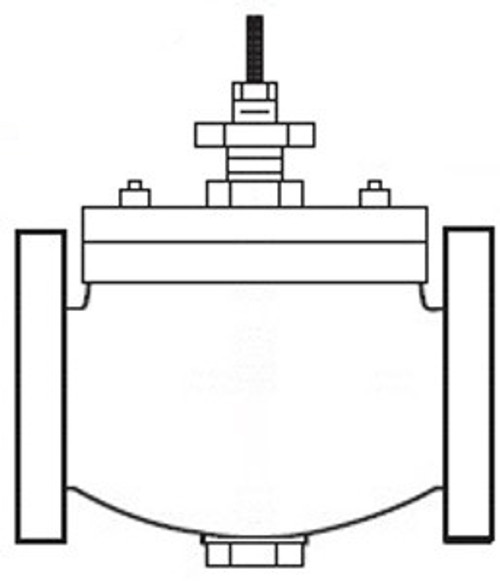

Valve Body (VB-9213-0-5-16): |Body Size: 6 in |Configuration: 2-Way |Type: Globe |Connection: Flanged |Stem Flow Action: Stem up A open |Material Trim: Brass |Flow Coefficient: 350 cv |Control Media: Steam, Water |Product Line: Schneider Electric |Product Series: VB-9200
- Body Size : 150 mm (6 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Configuration : 2-Way
- Connection Type : Flanged
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Equal Percentage
- Flow Coefficient : 302.71 kvs
- Flow Coefficient : 350 cv
- Manufacturer : Schneider Electric
- Material Body : Cast iron
- Material Plug : Brass
- Material Stem : Stainless Steel 316
- Material Trim : Brass
- Media Compatibility : Steam
- Media Compatibility : Water
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Packing Material : Spring-Loaded PTFE/EPDM
- Pipe Size : 6 in
- Pressure Allowable Static : 200 psig up to 150 °F decreasing to 169 psig at 281 °F
- Pressure Class : 125 ANSI
- Product Or Component Type : Valve
- Rangeability : 75:1 port A
- Seat Leakage : Port A: Class IV (0.01 %)
- Seat Material : Port A: bronze
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Up A Opened
- Stem Movement : Linear
- Stroke Distance : 3-1/8 in
- Take-back : No
- Temperature Range Fluid : 39…280 °F (4…138 °C)
- Temperature Range Saturated Steam : 39…280 °F (4…138 °C)
- Valve Product Series : VB-9200
- Valve Type : Globe
