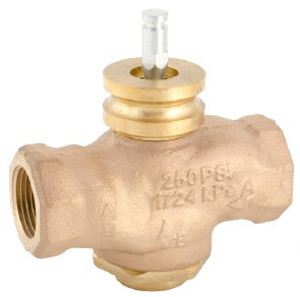

VG210R Globe Valve, 2-Way, DN15, Rp 1/2 Internal Thread, Brass Trim, PTFE Seat Seal, Kvs 0.4 m³/h, Stem Up Closed.

Body Size :

15 mm (1/2 in)

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Configuration :

2-Way

Connection Size :

Rp 1/2

Connection Type :

Rp Internal

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Equal Percentage

Flow Coefficient :

0.4 kvs

Flow Coefficient :

0.46 cv

Global Keywords :

Globe

Global Keywords :

Linear

Global Keywords :

SpaceLogic

Global Keywords :

Venta

Global Keywords :

VG210

Global Keywords :

VG210R

Manufacturer :

Schneider Electric

Material Body :

ASTM B584

Material Body :

Bronze

Material Body :

CDA 83450 Oshalloy

Material Plug :

Brass UNS C36000

Material Stem :

Stainless Steel 316Ti

Material Stem Seal :

EPDM

Material Stem Seal :

PTFE

Material Trim :

Brass

Media Compatibility :

Glycol 25 %

Media Compatibility :

Glycol 30 %

Media Compatibility :

Glycol 50 %

Media Compatibility :

Glycol 60 %

Media Compatibility :

Steam

Media Compatibility :

Water

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Packing Material :

EPDM

Packing Material :

PTFE

Pipe Size :

15 mm

Pressure Class :

PN16

Pressure Fluid Max Delta P Normal Life :

58 psi (399.9 kPa)

Product Or Component Type :

Valve

Rangeability :

Greater than 100:1

Satured Steam Pressure Delta P :

35 psi (241.3 kPa)

Seat Leakage :

Port A: Class IV (0.01 %)

Seat Leakage :

Port A: Class IV-S1 (0.005 %)

Seat Material :

Port A: bronze

Seating Seal Material :

PTFE

Selection Tools :

Valve Selection Tool

Stem Flow Action :

Stem Up Closed

Stem Movement :

Linear

Stroke Distance :

11 mm

Take-back :

No

Temperature Range Fluid :

19…275 °F (-7…135 °C)

Temperature Range Saturated Steam :

19…275 °F (-7…135 °C)

Valve Model :

VG210R 15B 0.4E SU 00

Valve Product Range :

Venta

Valve Product Series :

VG210R

Valve Type :

Globe
