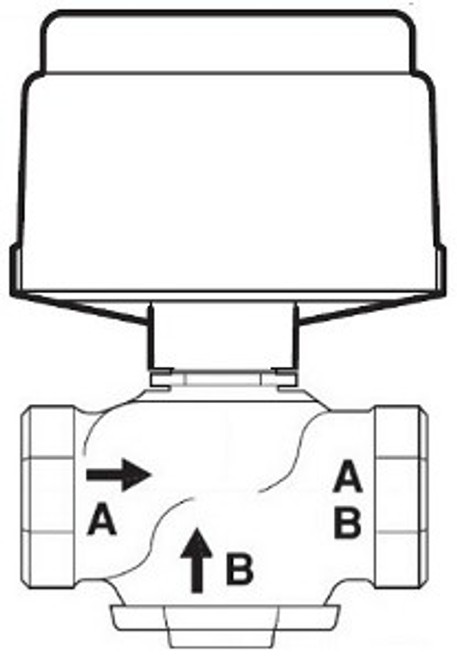

GV .75IN 2W 7.5CV PN 2PR SR
- Temperature Ambient Operating Range : -20…220 °F (-28.8…104.4 °C)
- Temperature Range Fluid : 19…280 °F (-7…138 °C)
- Temperature Range Saturated Steam : 19…280 °F (-7…138 °C)
- Temperature Shipping and Storage Range : -40…220 °F (-40…104.4 °C)
- Valve Product Range : Venta
- Valve Product Series : VB-7200
- Valve Type : Globe
- ActuatorComment : Comeswithablue8to13PSIGspring
- ActuatorProductSeries : MK-2690
- ActuatorType : Pneumatic
- BodyPattern : Straightway
- BodySize : 20mm(3/4in)
- Brand : SchneiderElectric
- BySchneider : Yes
- CircularityProfile : Noneedofspecificrecyclingoperations
- Close-OffPressure : 414kPa, 60psi
- Configuration : 2-Way
- ConnectionType : NPT
- ControlSignal : 2-Position(On/Off), Proportional/Modulating
- DiaphragmEffectiveArea : 6in\xc2\xb2(38.71cm\xc2\xb2)
- FinalResultforConnectable : Notconnectable
- FinalResultforFlywheelperformancetracking : Notconnectable
- FlowCharacteristic : EqualPercentage
- FlowCoefficient : 6.49kvs, 7.5cv
- Humidity : 5\xe2\x80\xa695%non-condensing
- IPProtectionRating : IP10
- LeadLength : 1/8in
- LeadsandConnections : AirNPT
- LossofPowerPosition : Normallyclosed
- LossofPowerType : Springreturn
- Manufacturer : SchneiderElectric
- Material : Diecastaluminium:housing
- MaterialBody : Bronze
- MaterialDiaphragm : Neoprene
- MaterialPlug : Brass
- MaterialTrim : Brass
- MechanicalMovement : Linear
- MediaCompatibility : Glycol25%, Glycol30%, Glycol50%, Glycol60%, Steam, Water
- Override : Manualoverridewith5/32allenwrench
- PackingMaterial : Spring-LoadedPTFE/EPDM
- PipeSize : 3/4in
- PositionIndicator : GreenPushStemwithColorMarkers
- Positioner : No
- PressureAllowableStatic : 400psigupto150\xc2\xb0Fdecreasingto321psigat281\xc2\xb0F
- PressureClass : 250ANSI
- PressureFluidMaxDeltaPNormalLife : 87psi(599.84kPa)
- PressureFluidMaxDeltaPQuietService : 35psi(241.32kPa)
- PressureSaturatedSteamMaximumInlet : 241.32kPa, 35psi
- ProductDestination : globevalve
- ProductOrComponentType : Valve-actuatorassembly
- Rangeability : 100:1
- SeatLeakage : PortA:ClassIV(0.01%), PortA:ClassV
- SeatMaterial : PortA:bronze
- SeatingSealMaterial : PTFE
- StemFlowAction : StemUpAClosed
- StemMovement : Linear
- StrokeAutoCalibration : No
- StrokeDistance : 7/16in
- TemperatureAmbientOperatingRange : -20\xe2\x80\xa6220\xc2\xb0F(-28.8\xe2\x80\xa6104.4\xc2\xb0C)
- TemperatureRangeFluid : 19\xe2\x80\xa6280\xc2\xb0F(-7\xe2\x80\xa6138\xc2\xb0C)
- TemperatureRangeSaturatedSteam : 19\xe2\x80\xa6280\xc2\xb0F(-7\xe2\x80\xa6138\xc2\xb0C)
- TemperatureShippingandStorageRange : -40\xe2\x80\xa6220\xc2\xb0F(-40\xe2\x80\xa6104.4\xc2\xb0C)
- ValveProductRange : Venta
- ValveProductSeries : VB-7200
- ValveType : Globe
