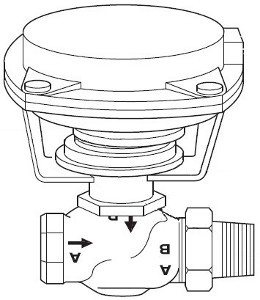

Valve Body (VB-7253-0-4-02):|1/2 in|2-Way|Globe|Straightway|NPT Connection|Stem Up Open|Stainless Steel Trim|1.3 Cv|250 Close-Off (PSIG) Actuator (MK-4601):|Pneumatic|Spring Return|Normally Open|3 to 6 PSIG|1/8 in Air NPT
- Body Pattern : Straightway~~
- Body Size : 15 mm (1/2 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Close-Off Pressure : 1724 kPa
- Close-Off Pressure : 250 psi
- Configuration : 2-Way
- Connection Type : NPT
- Control Signal : LON
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Coefficient : 1.12 kvs
- Flow Coefficient : 1.29 cv
- Leads and Connections : Air NPT
- Loss of Power Position : Normally open
- Loss of Power Type : Spring return
- Material Trim : Stainless Steel
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Or Component Type : Valve-actuator assembly
- Stem Flow Action : Stem Up A Opened
- Take-back : No
- Valve Type : Globe
