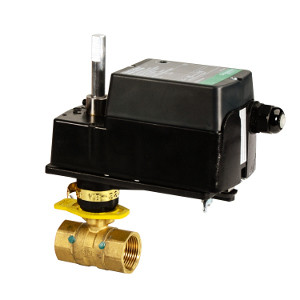

VS-2253-505-9-15

MediaCompatibility :

Glycol25%, Glycol30%, Glycol50%, Water

MotorType :

ACSynchronousServoMotor

NEMAProtectionRating :

NEMA2

Override :

Automaticreset

PipeSize :

3/4in

PositionIndicator :

PointerAndScaleFrom0...90\xc2\xb0

PowerConsumptionRunningVA :

3.3VAAC

PowerConsumptionRunningWatts :

3W

PressureAllowableStatic :

360psi

PressureClass :

ANSIclass360

PressureFluidMaxDeltaPNormalLife :

130psi(896.32kPa)

ProductDestination :

dampers, globevalve

ProductOrComponentType :

Valve-actuatorassembly

Rangeability :

159:1

Rotation :

95\xc2\xb0

RotationalRangeAdjustment :

0to95degrees

SeatLeakage :

PortA:ClassIV(0.01%)

StemMovement :

Rotary

TemperatureAmbientOperatingRange :

-25\xe2\x80\xa6130\xc2\xb0F(-31.6\xe2\x80\xa654.4\xc2\xb0C)

TemperatureRangeFluid :

19\xe2\x80\xa6250\xc2\xb0F(-7\xe2\x80\xa6121\xc2\xb0C)

TemperatureShippingandStorageRange :

-40\xe2\x80\xa6158\xc2\xb0F(-40\xe2\x80\xa670\xc2\xb0C)

Torque :

4.97N.m, 44lbf.in

ValveProductRange :

VB-2xxx

ValveProductSeries :

VB-2200

ValveType :

Ball

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27086.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-26646.PDF

[Us] rated supply voltage :

24 V AC~~

Actuator Product Range :

SmartX Actuator

Actuator Product Series :

Mx4x-6xxx

Actuator Type :

Electric

analogue input range :

0...10 V DC

Auxiliary Switch :

No

Body Size :

20 mm (3/4 in)

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Close-Off Pressure :

130 psi

Close-Off Pressure :

896 kPa

Conduit Connection :

1/2 in

Configuration :

2-Way

Connection Type :

NPT

Control Signal :

Proportional/Modulating

Feedback Signal :

0 to 10 VDC

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Equal Percentage

Flow Coefficient :

3.72 kvs

Flow Coefficient :

4.3 cv

Hold-In Power Consumption In Va :

1.2 VA AC

Humidity :

5-95 % non-condensing

Insulation Class :

Class II

IP Protection Rating :

IP11

Lead Length :

3 ft

Leads and Connections :

Plenum

Loss of Power Type :

Non-Spring Return

Manufacturer :

Schneider Electric

Material :

EPDM: O-rings

Material :

Polymer: housing

Material :

Reinforced teflon: seal

Material Ball :

Stainless Steel

Material Body :

Forged brass

Material Characterizing Insert :

Glass-Filled Noryl

Material Mounting Plate :

Glass-Filled Polymer

Material Stem :

Stainless Steel

Material Stem Seal :

EPDM O-Rings

Material Trim :

Stainless Steel

Mechanical Movement :

Rotary

Media Compatibility :

Glycol 25 %

Media Compatibility :

Glycol 30 %

Media Compatibility :

Glycol 50 %

Media Compatibility :

Water

Motor Type :

AC Synchronous Servo Motor

NEMA Protection Rating :

NEMA 2

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pipe Size :

3/4 in

Position Indicator :

Pointer And Scale From 0...90°

Power Consumption Running VA :

3.3 VA AC

Power Consumption Running Watts :

3 W

Pressure Allowable Static :

360 psi

Pressure Class :

ANSI class 360

Pressure Fluid Max Delta P Normal Life :

130 psi (896.3 kPa)

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rotation :

95 °

Rotational Range Adjustment :

0 to 95 degrees

Seat Leakage :

Port A: Class IV (0.01 %)

Selection Tools :

Valve Selection Tool

Stem Movement :

Rotary

Take-back :

No

Temperature Ambient Operating Range :

-25-130 °F (-31.6-54.4 °C)

Temperature Range Fluid :

19-250 °F (-7-121 °C)

Temperature Shipping and Storage Range :

-40-158 °F (-40-70 °C)

Torque :

44 lbf.in

Torque :

5.0 N.m

Valve Product Range :

VB-2xxx

Valve Product Series :

VB-2200

Valve Type :

Ball

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-26646.PDF||~~PDF
