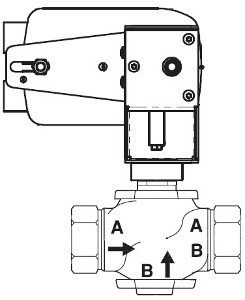

VS-7223-536-4-03

[Us] rated supply voltage :

22...30 V DC~~

[Us] rated supply voltage :

24 V AC/DC

Actuator Product Range :

SmartX Actuator

Actuator Product Series :

Mx4x-7xxx

Actuator Type :

Electric

analogue input range :

2...10 V DC

analogue input range :

4...20 mA DC

Auxiliary Switch :

No

Body Pattern :

Straightway

Body Size :

15 mm (1/2 in)

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Close-Off Pressure :

1724 kPa

Close-Off Pressure :

250 psi

Conduit Connection :

1/2 in

Configuration :

2-Way

Control Signal :

Proportional/Modulating

Feedback Signal :

2 to 10 VDC

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Flow Characteristic :

Equal Percentage

Flow Coefficient :

1.9 kvs

Flow Coefficient :

2.2 cv

Humidity :

5…95 % non-condensing

Insulation Class :

Class II

Lead Length :

3 ft

Leads and Connections :

Plenum

Loss of Power Position :

Normally closed

Loss of Power Type :

Spring return

Manufacturer :

Schneider Electric

Material Body :

Bronze

Material Plug :

Brass

Material Trim :

Brass

Mechanical Movement :

Rotary

Motor Type :

Brushless DC motor

Override :

Manual override with 5/32 allen wrench

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Packing Material :

Spring-Loaded PTFE/EPDM

Pipe Size :

1/2 in

Position Indicator :

Stroke Indicator On Bracket

Pressure Allowable Static :

400 psig up to 150 °F decreasing to 321 psig at 281 °F

Pressure Class :

250 ANSI

Pressure Fluid Max Delta P Normal Life :

87 psi (599.8 kPa)

Pressure Fluid Max Delta P Quiet Service :

35 psi (241.3 kPa)

Pressure Saturated Steam Maximum Inlet :

241.3 kPa

Pressure Saturated Steam Maximum Inlet :

35 psi

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rangeability :

100:1

Rotation :

95 °

Seat Leakage :

Port A: Class IV (0.01 %)

Seat Leakage :

Port A: Class V

Seat Material :

Port A: bronze

Seating Seal Material :

PTFE

Selection Tools :

Valve Selection Tool

Stem Flow Action :

Stem Up A Closed

Stem Movement :

Linear

Stroke Auto Calibration :

No

Stroke Distance :

7/16 in

Take-back :

No

Temperature Ambient Operating Range :

-22…140 °F (-30…60 °C)

Temperature Range Fluid :

19…280 °F (-7…138 °C)

Temperature Range Saturated Steam :

19…280 °F (-7…138 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Toxic heavy metal free :

Yes

Valve Product Range :

Venta

Valve Product Series :

VB-7200

Valve Type :

Globe

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27855.PDF
