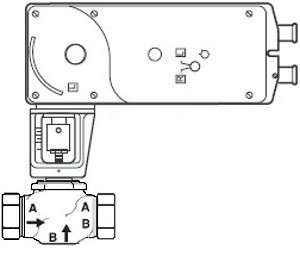

VS-7253-593-4-10

[Us] rated supply voltage :

22...30 V DC~~

[Us] rated supply voltage :

24 V AC/DC

Actuator Product Range :

SpaceLogic

Actuator Product Series :

MSx1-7203

Actuator Type :

Electric

analogue input range :

2...10 V DC

analogue input range :

4...20 mA DC

Auxiliary Switch :

No

Body Pattern :

Straightway

Body Size :

40 mm (1-1/2 in)

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Close-Off Pressure :

100 psi

Close-Off Pressure :

690 kPa

Conduit Connection :

1/2 in

Configuration :

2-Way

Control Signal :

Proportional/Modulating

Current Consumption :

290 mA

Feedback Signal :

2 to 10 VDC

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Linear

Flow Coefficient :

24.22 kvs

Flow Coefficient :

28 cv

Force lbf :

220 lbf

Force N :

979 N

Humidity :

15…95 % non-condensing

Insulation Class :

Class II

Lead Length :

3 ft

Leads and Connections :

Appliance

Loss of Power Position :

Normally open

Loss of Power Type :

Spring return

Manufacturer :

Schneider Electric

Material Body :

Bronze

Material Plug :

Stainless Steel

Material Trim :

Stainless Steel

Mechanical Movement :

Linear

Motor Type :

Brushless DC motor

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Packing Material :

Spring-Loaded PTFE/EPDM

Pipe Size :

1-1/2 in

Position Indicator :

-5°: Normal Or Spring-Return Position

Position Indicator :

Pointer And Scale From -5...90°

Pressure Allowable Static :

400 psig up to 150 °F decreasing to 321 psig at 281 °F

Pressure Class :

250 ANSI

Pressure Fluid Max Delta P Normal Life :

87 psi (599.8 kPa)

Pressure Fluid Max Delta P Quiet Service :

35 psi (241.3 kPa)

Pressure Saturated Steam Maximum Inlet :

100 psi

Pressure Saturated Steam Maximum Inlet :

689.5 kPa

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rangeability :

100:1

Seat Leakage :

Port A: Class IV (0.01 %)

Seat Leakage :

Port A: Class V

Seat Material :

Port A: stainless steel 316

Seating Seal Material :

PTFE

Selection Tools :

Valve Selection Tool

Stem Flow Action :

Stem Up A Opened

Stem Movement :

Linear

Stroke Auto Calibration :

No

Stroke Distance :

7/16 in

Take-back :

No

Temperature Ambient Operating Range :

0…140 °F (-17.7…60 °C)

Temperature Range Fluid :

19…340 °F (-7…171 °C)

Temperature Range Saturated Steam :

19…340 °F (-7…171 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Valve Product Range :

Venta

Valve Product Series :

VB-7200

Valve Type :

Globe
