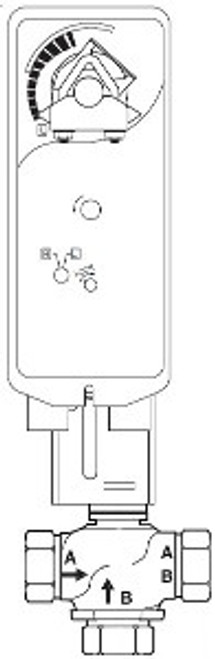

VS-7313-312-4-11

Actuator Product Range :

Gear Train~~

Actuator Product Series :

MPx-4xx

Actuator Type :

Electric

Additional Features :

Actuator Drive

Additional Features :

Feedback Potentiometer

Auxiliary Switch :

1 SPDT

Body Size :

50 mm (2 in)

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Conduit Connection :

1/2 in

Configuration :

3-Way Mixing

Connection Type :

NPT

Control Signal :

Proportional/Modulating

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Flow Characteristic :

Linear

Flow Coefficient :

35.46 kvs

Flow Coefficient :

41 cv

Humidity :

5…95 % non-condensing

Input Current :

500 mA

Insulation Class :

Class I

IP Protection Rating :

IP10

Leads and Connections :

Terminal Block

Loss of Power Type :

Spring return

Manufacturer :

TAC

Material :

Die cast aluminium: housing

Material Body :

Bronze

Material Plug :

Brass

Material Trim :

Brass

Mechanical Movement :

Rotary

Media Compatibility :

Glycol 25 %

Media Compatibility :

Glycol 30 %

Media Compatibility :

Glycol 50 %

Media Compatibility :

Glycol 60 %

Media Compatibility :

Water

Motor Type :

Oil immersed motor

Override :

Manual override with 5/32 allen wrench

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Packing Material :

Spring-Loaded PTFE/EPDM

Pipe Size :

2 in

Position Indicator :

Green Push Stem with Color Markers

Pressure Allowable Static :

400 psig up to 150 °F decreasing to 321 psig at 281 °F

Pressure Class :

250 ANSI

Pressure Fluid Max Delta P Normal Life :

87 psi (599.8 kPa)

Product Destination :

dampers

Product Destination :

globe valve

Product Or Component Type :

Valve-actuator assembly

Rangeability :

100:1 port A

Seat Leakage :

Port A: Class IV (0.01 %)

Seat Leakage :

Port A: Class V

Seat Leakage :

Port B: Class III (0.1 %)

Seat Material :

Port A: bronze

Seat Material :

Port B: bronze

Seating Seal Material :

Port A:EPDM

Seating Seal Material :

Port B:metal to metal

Stem Flow Action :

Stem Down Flow A to AB

Stem Movement :

Linear

Stroke Auto Calibration :

No

Stroke Distance :

7/16 in

Take-back :

No

Temperature Ambient Operating Range :

-40…136 °F (-40…57.7 °C)

Temperature Range Fluid :

19…280 °F (-7…138 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Valve Product Range :

Venta

Valve Product Series :

VB-7300

Valve Type :

Globe

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-26646-9.PDF||~~PDF
