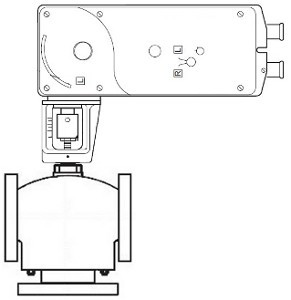

Valve Body (VB-9313-0-5-14):|4 in|3-Way Mixing|Globe|Flanged Connection|Brass Trim|170 Cv|9 Close-Off (PSI) Actuator (MS41-7073):|Proportional|Spring Return|24 VAC|60 in-lb Torque|3 ft Appliance Cable
- Body Size : 100 mm (4 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1746
- Close-Off Pressure : 63 kPa
- Close-Off Pressure : 9 psi
- Configuration : 3-Way Mixing
- Connection Type : Flanged
- Control Signal : Proportional
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Coefficient : 147.03 kvs
- Flow Coefficient : 170 cv
- Global warming ; Total life cycle? : 1 746 kg CO2 eq.
- Leads and Connections : Appliance
- Loss of Power Type : Spring return
- Material Trim : Brass
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Or Component Type : Valve-actuator assembly
- Take-back : No
- Toxic heavy metal free : Yes
- Valve Type : Globe
