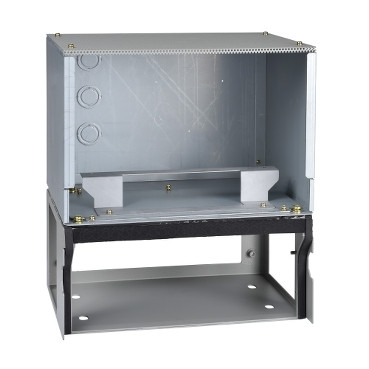

VW3A9207

Accessory / separate part category :

Mounting and fixing accessories

accessory / separate part type :

Conformity kit

degree of protection :

UL type 1

Product compatibility :

ATV212HD37N4, ATV212HD45N4, ATV61HD30N4, ATV61HD37N4, ATV71HD30N4, ATV71HD37N4

Accessory / separate part destination :

Variable speed drive

Range Compatibility :

Altivar 212, Altivar 71, Altivar 61

Kit composition :

Fixing accessories, 1 manual, All the mechanical parts including a pre-cut plate for connecting the tubes

Net Weight :

11.02 lb(US) (5 kg)

Standards :

UL Type 1

Category :

US1CP4C22135

Discount Schedule :

CP4C

GTIN :

3389119200875

Returnability :

Yes

Country of origin :

FR

Unit Type of Package 1 :

PCE

Number of Units in Package 1 :

1

Package 1 Height :

5.71 in (14.5 cm)

Package 1 Width :

5.51 in (14.0 cm)

Package 1 Length :

10.04 in (25.5 cm)

Package 1 Weight :

2.79 lb(US) (1.265 kg)

Unit Type of Package 2 :

S06

Number of Units in Package 2 :

8

Package 2 Height :

28.94 in (73.5 cm)

Package 2 Width :

23.62 in (60.0 cm)

Package 2 Length :

31.50 in (80.0 cm)

Package 2 Weight :

50.97 lb(US) (23.12 kg)

Warranty :

18 months

PDF :

https://download.schneider-electric.com/files?p_enDocType=Instruction+sheet&p_File_Name=30072-452-65.pdf&p_Doc_Ref=30072-452-65

PDF :

https://download.schneider-electric.com/us/en/product/download-pdf/VW3A9207?filename=Schneider+Electric_Altivar-71-Variable-Frequency-Drives-VFD_VW3A9207.pdf

PDF :

https://download.schneider-electric.com/files?p_enDocType=Catalog&p_File_Name=0100CT1901_SEC-26_OCT2021.pdf&p_Doc_Ref=0100CT1901_SEC-26
