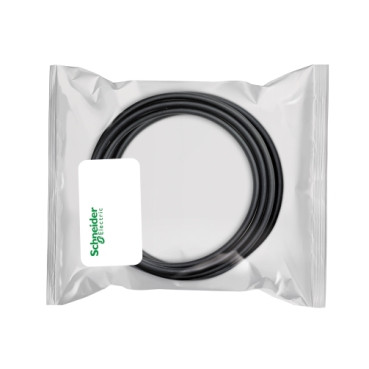

This product is part of the Lexium range, an offer of motion servo drives and servo motors. This control cable is an accessory of encoder. The length of this cable is 15m. It is furnished with M23 connector, RJ45 connector for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It is used to connect from servo motor to servo drive. It weighs 1.1kg. This product is compatible with Lexium 32 SinCos Hiperface encoder.
- Range of Product : Lexium
- Accessory / separate part category : Connection accessory
- accessory / separate part type : Control cable
- Product or Component Type : SinCos Hiperface encoder cable
- Accessory / separate part destination : From servo motor to servo drive
- cable composition : 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²)
- Electrical connection : 1 connector M23, 1 connector RJ45
- Range Compatibility : Lexium 32
- Cable length : 49.21 ft (15 m)
- Net Weight : 2.43 lb(US) (1.1 kg)
- Category : US1PC5118263
- Discount Schedule : PC51
- GTIN : 3606480166648
- Returnability : Yes
- Country of origin : CZ
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.56 in (6.5 cm)
- Package 1 Width : 14.53 in (36.9 cm)
- Package 1 Length : 14.65 in (37.2 cm)
- Package 1 Weight : 33.79 oz (958.0 g)
- Unit Type of Package 2 : S04
- Number of Units in Package 2 : 12
- Package 2 Height : 11.81 in (30.0 cm)
- Package 2 Width : 15.75 in (40.0 cm)
- Package 2 Length : 23.62 in (60.0 cm)
- Package 2 Weight : 29.05 lb(US) (13.178 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 48
- Package 3 Height : 30.31 in (77.0 cm)
- Package 3 Width : 31.50 in (80.0 cm)
- Package 3 Length : 23.62 in (60.0 cm)
- Package 3 Weight : 134.95 lb(US) (61.212 kg)
- Warranty : 18 months
