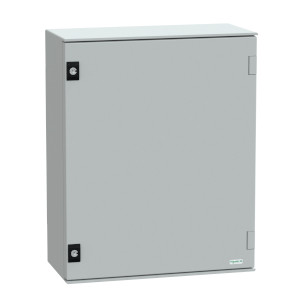

Wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate
- accessibility for operation : Front~~
- Application : Multi-purpose
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 62
- Circularity Profile : No need of specific recycling operations
- Color : Gray RAL 7035)
- Device Composition : 1 body
- Device Composition : 1 door
- Device Composition : 1 mounting plate
- Device Composition : 2 lock
- Device Short Name : PLM
- door type : Solid
- Enclosure Mounting : Wall mounted
- enclosure nominal depth : 7.9 in (200 mm)
- enclosure nominal height : 20.9 in (530 mm)
- enclosure nominal width : 16.9 in (430 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- fire resistance : 1760 °F (960 °C) IEC 62208
- Global Keywords : box
- Global Keywords : case
- Global Keywords : class 2
- Global Keywords : electrical enclosure
- Global Keywords : industry
- Global Keywords : infrastructures
- Global Keywords : Insulated
- Global Keywords : monobloc
- Global Keywords : polyester
- Global Keywords : service panel
- Global Keywords : wall mounting enclosure
- Global Keywords : water
- Global Keywords : Cabinet
- Global Keywords : Electrical protection
- Global Keywords : Enclosure
- Global Keywords : PanelSeT PLM
- Global Keywords : Plastic
- Global Keywords : Thalassa PLM
- Global warming ; Total life cycle? : 62 kg CO2 eq.
- IK Degree of Protection : IK10 IEC 62262
- Insulation Class : Class II
- IP Degree of Protection : IP66 IEC 60529
- Lock Type : 3 mm double-bar lock
- Manufacturer : Square D
- Material : polyester reinforced with fibreglass
- Minimum percentage of recycled plastic content : 37
- mounting plate description : Plain steel
- number of locks : 2
- Number of Units in Package 2 : 30
- Package 2 Height : 74.02 in (188.000 cm)
- Package 2 Length : 47.24 in (120.000 cm)
- Package 2 Weight : 562.179 lb(US) (255.000 kg)
- Package 2 width : 39.37 in (100.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Certifications : UL
- Product Name : Thalassa PLM
- Product Or Component Type : Compact enclosure
- Range : PanelSeT
- removable parts : Door by hinges
- removable parts : Mounting plate by fixing element
- Standards : IEC 62208
- Standards : NEMA classification 13
- Standards : NEMA classification 4X
- Take-back : No
- Temperature Ambient Operating Range : -40…176 °F (-40…80 °C)
- Unit Type of Package 2 : PAM
- UNSPSC Classification v19 : 39121324
- UNSPSC Classification v23 : 39121324
- Volume of Package 2 : 2256000.000 cm3
- Warranty : 18 months
