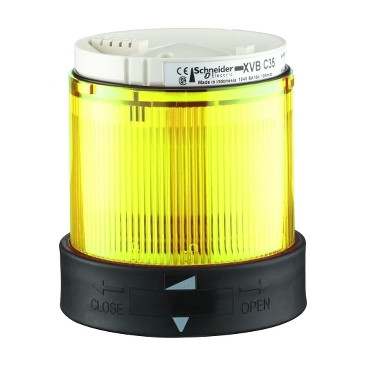

This yellow illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Range of Product : Harmony XVB Universal
- Product or Component Type : Indicator bank
- beacon or indicator bank unit type : Illuminated unit
- Signalling type : Flashing
- Mounting diameter : 2.76 in (70 mm)
- component name : XVBC
- Material : Polycarbonate
- Light source : Bulb not included, yellow
- Bulb type : Incandescent BA 15d, Protected LED, Incandescent
- [Us] rated supply voltage : 24 V AC, 24...48 V DC
- Assembly style : Customer assembly, up to 5 units
- Maximum power dissipation in W : 7 W
- Connections - terminals : Screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Ui] rated insulation voltage : 250 V IEC 60947-1
- Nominal voltage limit : 0.85...1.1 Un IEC 60947-5-1
- [Uimp] rated impulse withstand voltage : 4 kV IEC 60947-1
- Flashing frequency : 1 Hz
- CAD overall width : 2.76 in (70 mm)
- CAD overall height : 2.48 in (63 mm)
- CAD overall depth : 2.76 in (70 mm)
- Net Weight : 0.35 lb(US) (0.16 kg)
- Pollution degree : 2
- Product Certifications : CCC, EAC, CSA C22-2 No 14, UL 508
- Standards : EN/IEC 60947-5-1
- Protective treatment : TC
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient air temperature for operation : -13…122 °F (-25…50 °C) incandescent, -13…122 °F (-25…50 °C) LED
- Electrical shock protection class : Class I on support tube IEC 61140, Class II on base unit IEC 61140
- IP degree of protection : IP65 on fixing base XVBZ0. IEC 60529, IP66 on base unit IEC 60529
- NEMA degree of protection : Type 4X UL indoor)
- Category : US100XV22611
- Discount Schedule : 00XV
- GTIN : 3389110845174
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.15 in (8.0 cm)
- Package 1 Width : 3.15 in (8.0 cm)
- Package 1 Length : 3.66 in (9.3 cm)
- Package 1 Weight : 5.08 oz (144.0 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 36
- Package 2 Height : 11.81 in (30.0 cm)
- Package 2 Width : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 12.91 lb(US) (5.858 kg)
- Warranty : 18 months
