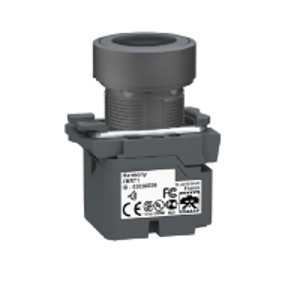

ZB5R Transmitter Complete, Black Cap
- acquisition time : 2 ms~~
- Antenna Gain : 0 dBi
- antenna type : Omnidirectional
- bandwidth : 5 MHz
- bezel material : Dark grey plastic
- Brand : Schneider Electric
- By Schneider : Yes
- CAD overall depth : 1.7 in (43 mm)
- CAD overall height : 1.6 in (41.5 mm)
- CAD overall width : 1.2 in (30 mm)
- cap/operator or lens colour : Black
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- Communication Port Protocol : Zigbee green power 2.4 GHz IEEE 802.15.4
- customizable : 0
- customizable : No
- Device Short Name : XB5R
- Directives : 1999/5/EC - R&TTE directive
- Directives : 2004/108/EC - electromagnetic compatibility
- electrical composition code : PW1
- Electromagnetic Compatibility : Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
- Electromagnetic Compatibility : Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
- Electromagnetic Compatibility : Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
- Embedding Depth : 1.7 in (42 mm)
- Emission Power : 3 mW
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- fixing collar material : Plastic
- Fixing Mode : Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m)
- Global Keywords : 16 channel transmitter
- Global Keywords : 22mm pushbutton with transmitter
- Global Keywords : 2405mhz transmitter
- Global Keywords : Black round flush pushbutton
- Global Keywords : Control station transmitter
- Global Keywords : Dark grey plastic bezel pushbutton
- Global Keywords : Dust-tight pushbutton
- Global Keywords : Harmony xb5 wireless and batteryless pushbutton
- Global Keywords : II marked pushbutton head
- Global Keywords : Ik03 pushbutton
- Global Keywords : Ip66 pushbutton
- Global Keywords : Ip67 pushbutton
- Global Keywords : Ip69 pushbutton
- Global Keywords : Ip69k pushbutton
- Global Keywords : Omnidirectional antenna transmitter
- Global Keywords : Pushbutton with transmitter
- Global Keywords : Schneider
- Global Keywords : Schneider electric
- Global Keywords : Se
- Global Keywords : Spring return push-button with transmitter
- Global Keywords : Zb5r wireless and batteryless package
- Global Keywords : Zigbee wireless transmitter
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- group of product : Flush push wireless
- IK Degree of Protection : IK03 conforming to IEC 50102
- IP Degree of Protection : IP66 IEC 60529 front face)
- IP Degree of Protection : IP67 IEC 60529 front face)
- IP Degree of Protection : IP69 IEC 60529 front face)
- IP Degree of Protection : IP69K IEC 60529 front face)
- level or class : 5M00G7W
- main group : Wireless push-button
- Manufacturer : Schneider Electric
- Marking : Unmarked
- Max Power Consumption In W : 1 mW
- maximum sensing distance : 328.08 ft (100 m) in free field
- maximum sensing distance : 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure
- maximum sensing distance : 984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Mechanical Durability : 1000000 cycles
- Mechanical Robustness : Free fall resistance 1000 mm IEC 60068-2-32
- Modulation Technique : O-QPSK
- mounting diameter : 0.9 in (22 mm)
- Net Weight : 0.099 lb(US) (0.045 kg)
- Number Of Channels : 16
- Number of Units in Package 2 : 25
- operating force : 10 N C/O changing electrical state
- operating travel : 0.2 in (4.3 mm) total travel)
- operator profile : Black flush
- Package 2 GTIN : 13606480334587
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 2.544 lb(US) (1.154 kg)
- Package 2 width : 5.91 in (15.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Product Certifications : BT 2006/95/EC
- Product Certifications : CSA
- Product Certifications : C-tick
- Product Certifications : GOST
- Product Certifications : UL
- Product Or Component Type : Wireless and batteryless transmitter
- radio agreement : ANATEL
- radio agreement : ARIB T66
- radio agreement : FCC
- radio agreement : ICASA
- radio agreement : RSS
- Relative Humidity : 95 % -40…158 °F (-40…70 °C) without condensation
- SCIP Number : E1d47e89-a4e1-4f33-a0c0-2fe5c9179aa4
- shape of signaling unit head : Round
- shock resistance : 25 gn 6 ms) 6000 shocks IEC 60068-2-27
- shock resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- shock resistance : 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards : CSA C22.2 No 14
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : UL 508
- station name : XALD 1...5 cut-outs
- station name : XALK 2...5 cut-outs
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Transmission Frequency : 2405 MHz
- Type Of Operator : spring return push-button with transmitter
- Unit Type of Package 2 : S01
- UNSPSC Classification v19 : 39122216
- UNSPSC Classification v23 : 39122216
- vibration resistance : +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6
- vibration resistance : 5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6
- Volume of Package 2 : 9000.000 cm3
- Warranty : 18 months
