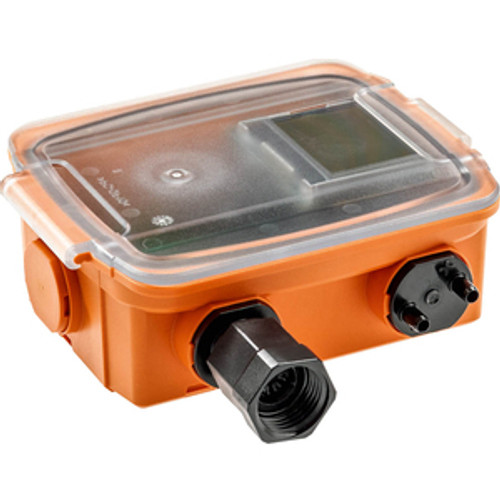

Differential pressure sensor Air, -0.6...1 inch WC [-150...250 Pa], Auto-Zero, 0...5 V, 0...10 V, 4...20 mA, LCD Parts included: mounting plate, PVC tube 2 m, 2 connection elements (plastic), dowels, screws, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC\xa024\xa0V
- Electrical Connection : Terminals
- Measured Values : Differential pressure
- Output Signal : 0...5\xa0V ; 0...10\xa0V ; 4...20\xa0mA
- Measuring Range Pressure : -150...250 Pa
- Measuring Range Pressure : -0.6...1 inch WC
- Output Voltage [Range] : 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output Current [Range] : 1x 4...20 mA, max. resistance 500 Ω
- Output signal active note : Output 0...5/10 V selectable with switch
- Display Type : LCD
