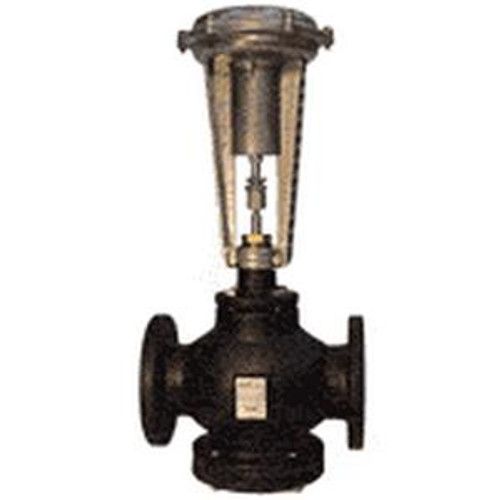

284-06051 - Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng 8" Pneuamtic Act w/ pos
Technical Specifications:
- Valve Body Style: Stroke-Globe
- Port Configuration: 2-Way Normally closed
- End Connection: Flanged
- Connecting thread: Direct-coupled universal bonnet
- Material, valve body: Cast iron ASTM A126 Class B
- Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium: Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate: Class IV (0.01% of Cv)
- Rangeability: >100:1
- High temperature: YES
- Medium temperature: 20…337 ºF
- Stroke: 3/4 in., 20 mm
- Valve Actuator Type: Pneumatic
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: 284-06051
