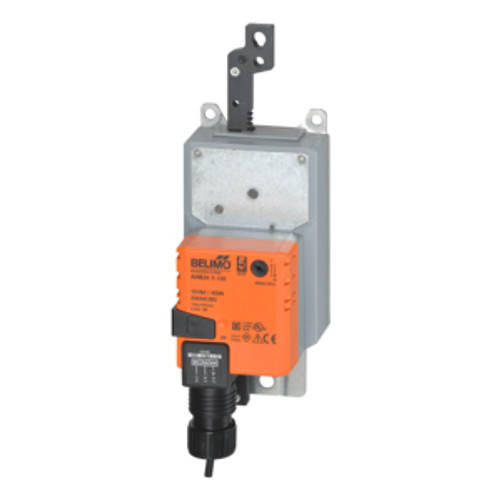

ConfigurableDamper Actuator, 450 N [100 lbf], Non fail-safe, AC 100...240 V, 2...10 V, cable, modulating
- Voltage AC/DC : AC 100...240 V
- Power Consumption (Running) : 5 W
- Power Consumption (Holding) : 1.2 W
- Power Consumption For Wire Sizing : 7.5 VA
- Force : 450 N [100 lbf]
- Control Type : DC 2...10 V
- Direction Of Motion Motor : reversible with switch
- Manual Override : External push button
- Stroke : 4" [100 mm]
- Running Time (Motor) : 150 s / 100 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -22...122°F [-30...50°C]
