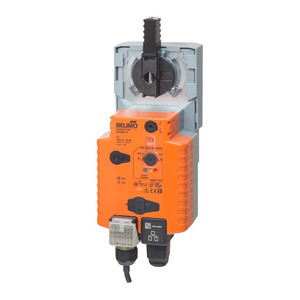

Valve Actuator, Electrical fail-safe, AC/DC 24 V, modulating, communicative, Hybrid, Cloud, BACnet IPModbus TCP
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 13 W
- Power Consumption (Holding) : 8.5 W
- Power Consumption For Wire Sizing : 21 VA
- Torque : 180\xa0in-lb [20\xa0Nm]
- Control Type : BACnet/IP ; Modbus TCP ; Cloud
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with switch
- Manual Override : External push button
- Angle of Rotation : 90
- Running Time (Motor) : 150\xa0s / 90°
- Running Time range (Motor) : 70...220\xa0s
- Running Time (Fail-safe) : <35 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : -22...122°F [-30...50°C]
