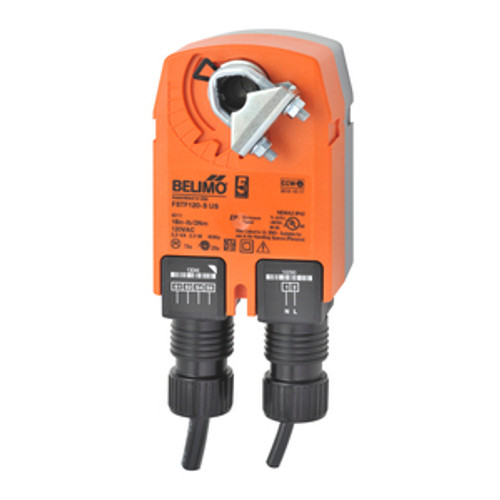

3/4 X 3/4 2NC BRASS 16.1/F AC
- Voltage AC/DC : AC\xa0230\xa0V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) FS : 4.5 VA
- Power Consumption For Wire Sizing : 5 VA
- Auxiliary Switches : 2x SPST
- Connection Auxilary Switch : Cable 3\xa0ft.\xa0[1\xa0m], 6x 18\xa0AWG appliance cablewith 1/2" NPT conduit connector
- Torque : 18\xa0in-lb [2\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 75\xa0s / 90°
- Running Time (Fail-safe) : <25\xa0s
- Protection category : IP42
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : 32...122°F [0...50°C ]
