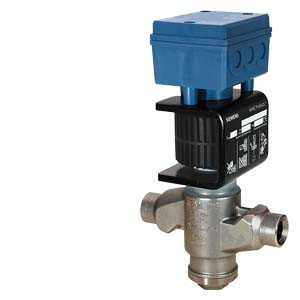

MVS661.25-0.4N - 2-port refrig valve, PN 63, DN25, 0.4kvs, 24VAC/DC, 0/2...10 VDC / 0/4...20 mA
- Ambient temperature, operation : -25…55 °C
- Degree of protection : IP65
- k vs : 0.4 m³/h
- k vs reduced : 0.25 m³/h
- Leakage rate : 0.002 % of kvs
- Material, inside set : CrNi steel
- Medium temperature : -40…120 °C; -40…248 ºF
- Mounting position : Upright to horizontal
- Nominal pressure : PN 63
- Operating voltage : 24 VAC/DC , 20…30 VDC
- Permissible operating pressure : 6300 kPa; 914 psi
- Position feedback : DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal : DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Positioning time : 1 s
- Power consumption : 22 VA
- Spring return function : Closed
- Valve characteristic : Linear
- Δp max : 2500 kPa
- Operating range : DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Stroke resolution ΔH/H 100 : 1:1000
- Material, valve body : Steel / CrNi steel
- Dimensions (W x H x D) : 6.3 x 11.22 x 4.02 in
- DN : 25
