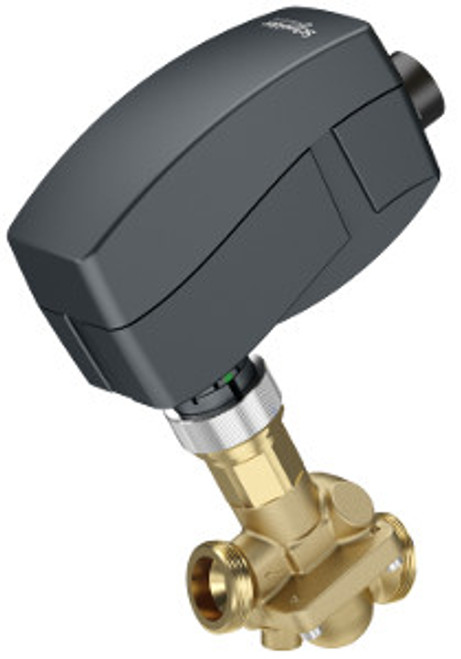

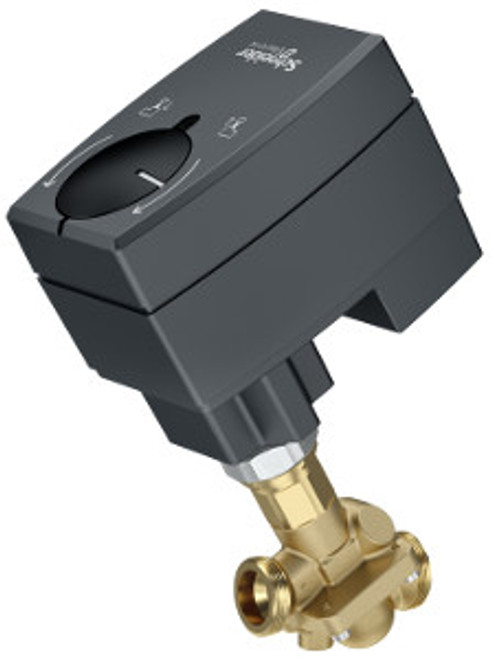

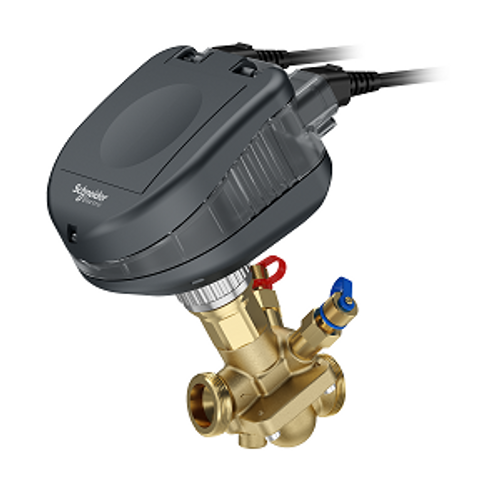

PIBCV Assembly, 2-Way, 1 in, NPT, 12 GPM, BACnet/Modbus, NSR, 24 VAC/DC, NEMA 2

Accuracy Setting Knob :

5%

Brand :

Schneider Electric

By Schneider :

Yes

Configuration :

2-Way

Connection Type :

NPT

Control Signal :

Proportional/Modulating

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Flow Characteristic :

Linear

Flow Rate Maximum (l/s & l/h) :

0.52 l/s

Flow Rate Maximum (m³/h) :

1.87 m³/h

Flow Rate Maximum GPM :

8.25 gal(US)/min

Flow Rate Minimum (l/s & l/h) :

0.094 l/s

Flow Rate minimum GPM :

1.5 gal(US)/min

Flow Rate Nominal (gpm) :

7.5 gal(US)/min

Flow Rate Nominal (lps) :

0.47 l/s

Flow Rate Nominal (m³/h) :

1.70 m³/h

Force lbf :

21 lbf

Force N :

90 N

Global Keywords :

Communicating actuator

Global Keywords :

PIBCV valve assembly

Global Keywords :

PIBCV with smart actuator

Global Keywords :

PICBCV communicating actuator

Global Keywords :

Smart actuator

Global Keywords :

SP90 valve assembly

Indivisible Sale Qty :

1

Insulation Class :

Class III

Loss of Power Type :

Non-Spring Return

Material Body :

Brass

Material Diaphragm :

EPDM

Mechanical Movement :

Linear

Media Compatibility :

Glycol 25 %

Motor Type :

Brushless DC motor

Override :

Manual Override

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pipe Size :

1 in

Pressure Allowable Static :

16 bar, 200 psi up to 150 °F

Pressure Class :

PN16

Pressure Differential Maximum (kPa) :

600 kPa

Pressure Differential Maximum PSI :

87 psi

Pressure Differential Minimum (kPa) :

35 kPa

Pressure Differential Minimum PSI :

5.08 psi

Pressure Fluid Max Delta P Normal Life :

58 psi (399.9 kPa)

Rangeability :

1000:1

Seat Leakage :

Class IV (0.01 %)

Seat Material :

EPDM

Stem Movement :

Linear

Take-back :

No

Temperature Range Fluid :

14…248 °F (-10…120 °C)

Valve Product Range :

SpaceLogic

Valve Product Series :

VP229E

Valve Type :

Electronic Pressure Independent~~
