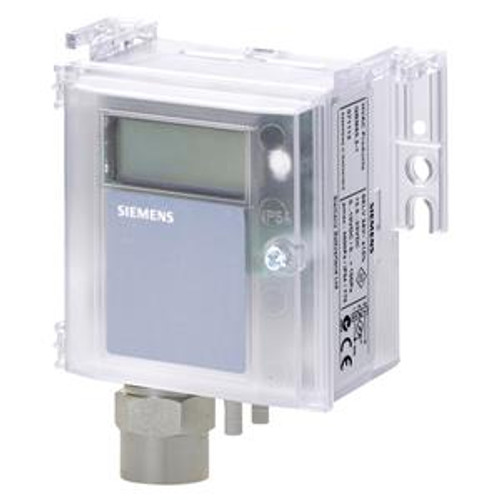

QBM3230U10D - Air DP Sensor, 0" to 10", Selectable Range/Output, Display
- Connection, electrical : Screw terminals
- Dimensions (W x H x D) : 3.25 x 2.95 x 1.93 in
- Measuring range, pressure : 0…2500 Pa, 0…1600 Pa, 0…1000 Pa
- Medium temperature : 0…70 °C
- Pressure connection : 0.25" Plastic Tubing
- Operating voltage : 13.5…33 VDC
- Analog outputs : 0-10V / 0-5V / 4-20mA (2 Wire)
- Measuring range : 0" to 10", Adjustable
- Connection cable : For use with 1/4 in. push on tubing
- Display : LCD
- Connecting thread : Screw terminal strip
