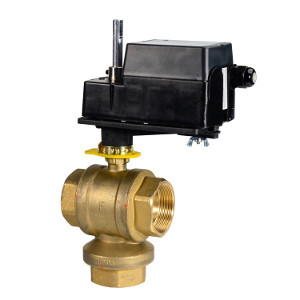

Valve Assembly: |Body Size: 1-1/2 in |Configuration: 3-Way Mixing |Type: Ball |Connection: NPT |Material Trim: Brass |Flow Coefficient: 13.4 cv |Control Media: Glycol 25-50% and Water |Close-Off Pressure: 40PSI |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 0 to 10 VDC |Loss of Power Type: Non-Spring Return |Power Input Voltage: 24 VAC |Leads and Connections: 3 ft Plenum |Torque: 70 in-lb |Mechanical Movement: Rotary |Protection Rating: NEMA 2 |Product Line: Schneider Electric |Product Range: SmartX Actuator |Product Series: Mx4x-6xxx |Actuator Use: Dampers, Globe Valves Assembly Components:|Valve Body: VB-2313-500-9-53 |Actuator: MS41-6083 |Actuator Range: SmartX Actuator Product Alert: Not for use with steam
- [Us] rated supply voltage : 24 V AC~~
- Actuator Product Range : SmartX Actuator
- Actuator Product Series : Mx4x-6xxx
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- Auxiliary Switch : No
- Body Size : 40 mm (1-1/2 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Close-Off Pressure : 276 kPa
- Close-Off Pressure : 40 psi
- Conduit Connection : 1/2 in
- Configuration : 3-Way Mixing/Diverting
- Connection Type : NPT
- Control Signal : Proportional/Modulating
- Feedback Signal : 0 to 10 VDC
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Equal Percentage
- Flow Coefficient : 11.59 kvs
- Flow Coefficient : 13.4 cv
- Humidity : 5…95 % non-condensing
- Insulation Class : Class II
- IP Protection Rating : IP11
- Lead Length : 3 ft
- Leads and Connections : Plenum
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Material : Polymer: housing
- Material Ball : Chrome Plated Brass
- Material Ball : Nickel
- Material Body : Forged brass
- Material Characterizing Insert : Glass-Filled Noryl
- Material Mounting Plate : Glass-Filled Polymer
- Material Stem : Stainless Steel
- Material Stem Seal : EPDM O-Rings
- Material Trim : Brass
- Mechanical Movement : Rotary
- Media Compatibility : Glycol 25 %
- Media Compatibility : Glycol 30 %
- Media Compatibility : Glycol 50 %
- Media Compatibility : Water
- Motor Type : AC Synchronous Servo Motor
- NEMA Protection Rating : NEMA 2
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Pipe Size : 1-1/2 in
- Position Indicator : Pointer And Scale From 0...90°
- Power Consumption Running VA : 3.3 VA AC
- Pressure Allowable Static : 360 psi
- Pressure Class : ANSI class 360
- Pressure Fluid Max Delta P Normal Life : 40 psi (275.8 kPa)
- Product Alert : Not for use with steam
- Product Destination : dampers
- Product Destination : globe valve
- Product Or Component Type : Valve-actuator assembly
- Rotation : 95 °
- Rotational Range Adjustment : 0 to 95 degrees
- Seat Leakage : Port A: Class IV (0.01 %)
- Selection Tools : Valve Selection Tool
- Stem Movement : Rotary
- Take-back : No
- Temperature Ambient Operating Range : -25…130 °F (-31.6…54.4 °C)
- Temperature Range Fluid : 19…250 °F (-7…121 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Torque : 10.0003 N.m
- Torque : 88.51 lbf.in
- Valve Product Range : VB-2xxx
- Valve Product Series : VB-2300
- Valve Type : Ball
